VERTICAL PRESSURE FILTERS

The vertical pressurized sand filters are used to extract all of the suspended solids and particles sized between 30…60 µm, so-called mechanical impurities.

Filtration under pressure can be carried out in one or more parallel connected filters. Depending on the type of installation the working pressure of the filter may be from optimal 2 bar to 10 bar or more.

Filters can be made of structural or stainless (AISI 304, 316) steel. Each filter is separately designed for the thickness of the casing wall and lid, due to the different operating pressure. Corrosion protection is required on both inside and outside if the filter is made out of structural steel. Corrosion protection is implemented through sandblasting (SA 2.5) and surface protection with multi-layer epoxy coating. The outer coat consists of a base and a polyurethane layer with a minimum thickness of 120 µm and the inner coating 300 µm with epoxy coating approved for use in the food industry.

In addition, of the mentioned surface protection, the inside of the filter can be coated with acid- resistant "EBONIT" rubber E -10.10. 4 mm thick, with the vulcanization in an autoclave, and after such protection the filter can be used in installations where aggressive media is used (disinfection of water with ozone or in the processes in which the filling is regenerated with acids).

It is also possible to make surface protection with processes of cold and hot galvanization. Depending on the required capacity, the filters can be made in different variants according to the customer's specification.

alternative alternative
PDF catalog

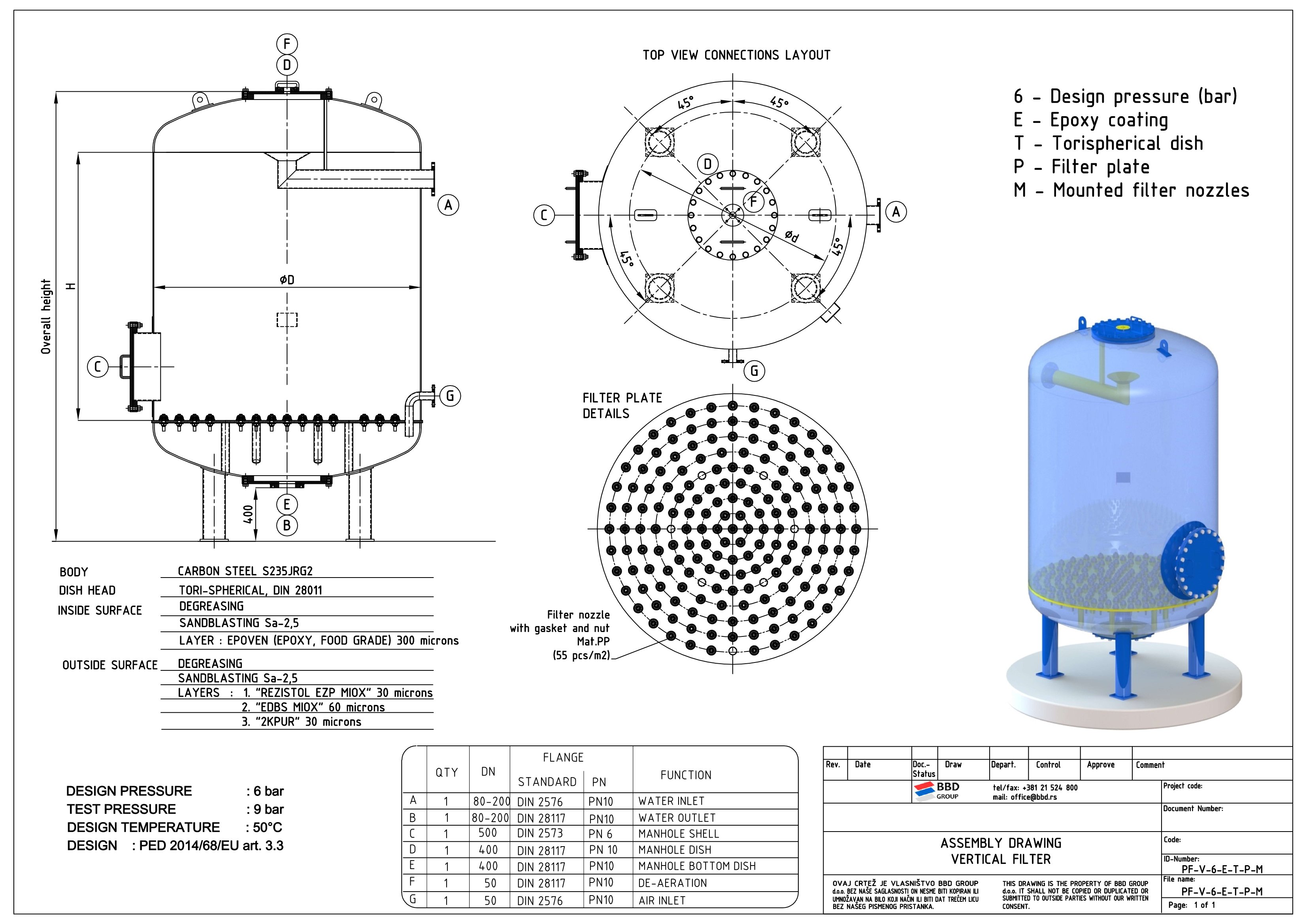

PF-V-6-E-T-P-M


6 - Design pressure
E - Epoxy coating
T - Torispherical dish
P - Filter plate
M - Munted nozzles



MATERIAL: CS( S235JRG2) / AISI 304/ AISI 316L
EXTERNAL SURFACE PROTECTION: Sandblasted (SA 2.5)
Epoxy layer thickness min 120 μm, 3 layers
INTERNAL SURFACE PROTECTION: Sandblasted (SA 2.5)
Epoxy layer, thickness min 300 μm
(Food grade epoxy-Drinking water certificate,on request) or
Sandblasted (SA 2.5)
Ebonit rubber, 4 mm
WORK PRESSURE/TEST PRESSURE: 6 bar / 9 bar
WORK TEMPERATURE: max. 50°C
MAX.FLUSHING SPEED: 30 m/h
WATER FLOW SPEED THROUGH PIPES: max. 2,5 m/s
CALCULATION/DOCUMENTATION: PED 2014/68 CE art 3.3

CONNECTIONS
DN STANDARD PN FUNCTION
A 125 DIN 2576 PN10 WATER INLET
B 125 DIN 28117 PN10 WATER OUTLET
C 500 DIN 2573 PN6 MANHOLE SHELL
D 500 DIN 28117 PN10 MANHOLE DISH
E 500 DIN 28117 PN10 MANHOLE BOTTOM DISH
F 50 DIN 28117 PN10 DE-AERATION
G 50 DIN 2576 PN10 AIR INLET
